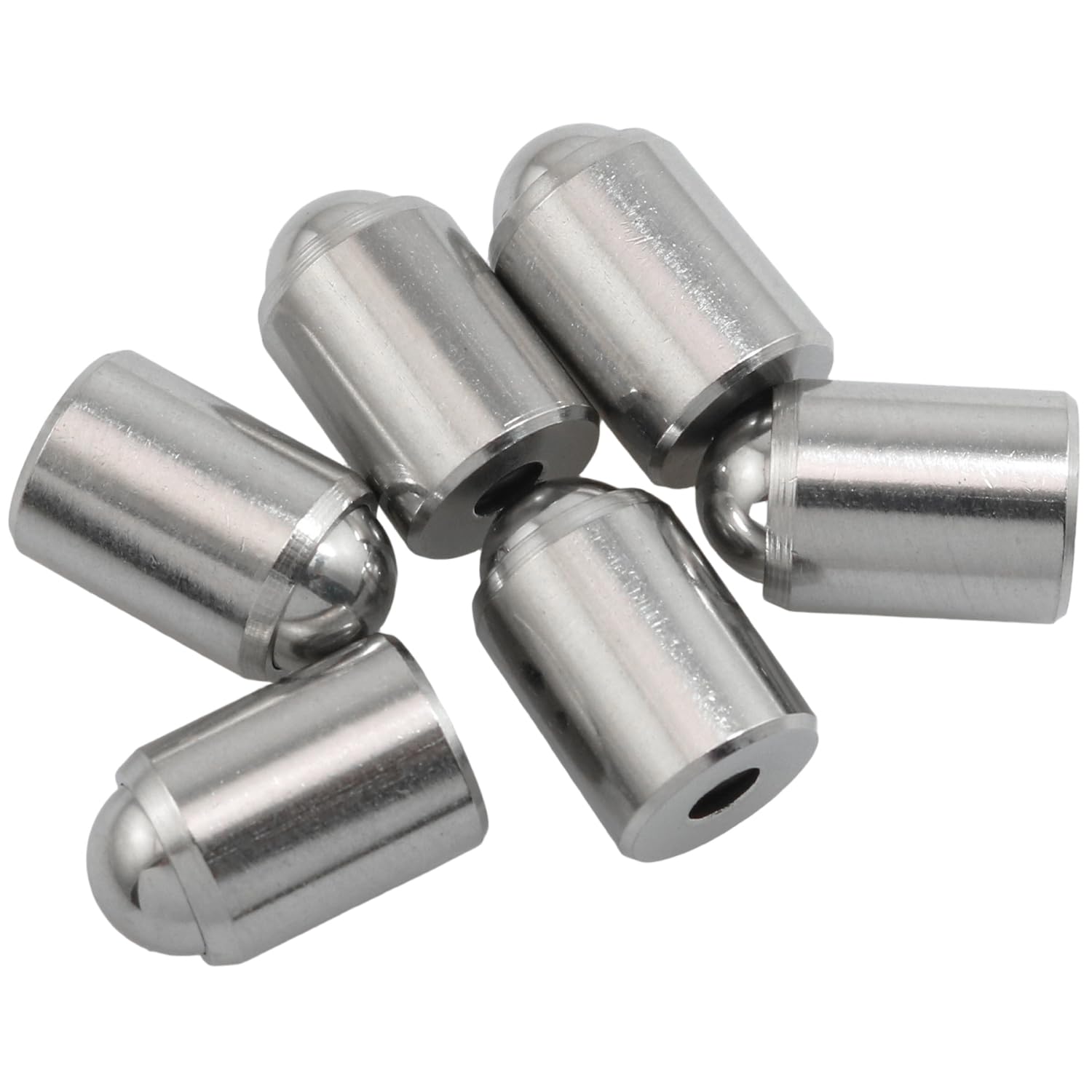

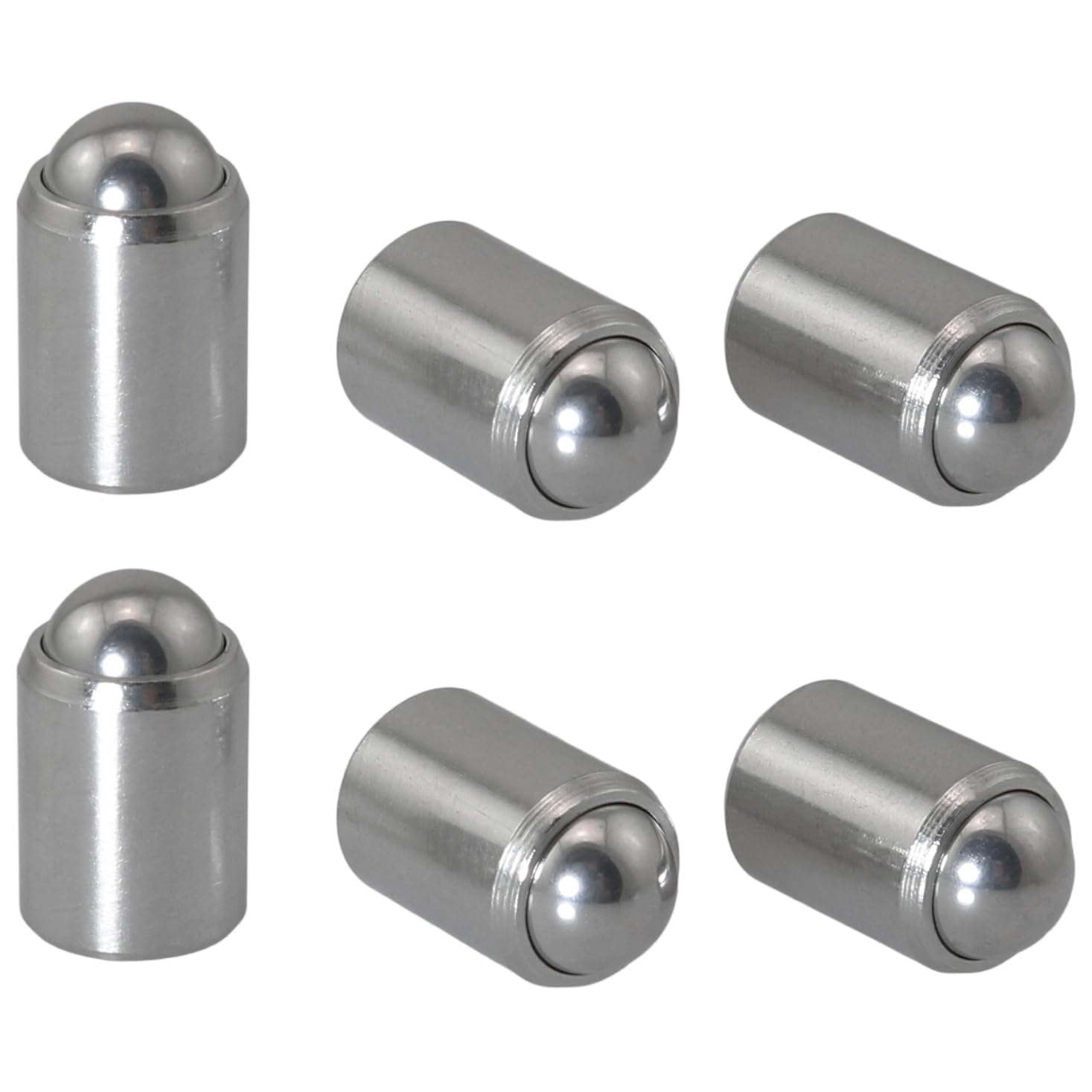

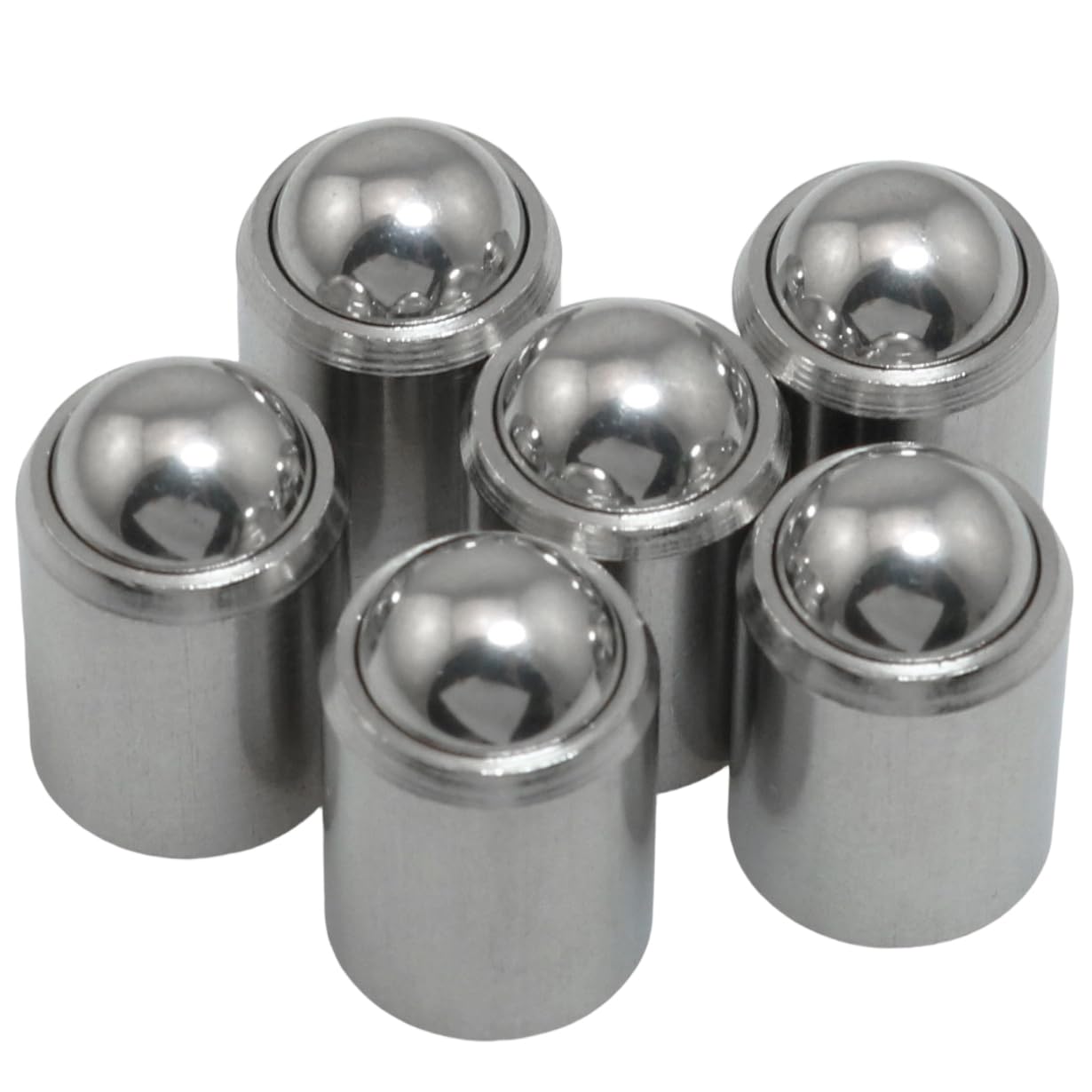

MEETOOT 6PCS 10x13mm 304 Stainless Steel Ball Head Spring Plunger Suitable for Mechanical Equipment Tooling Fixtures Furniture Drawers Cabinet Door

Product specifications: Dimensions: Body diameter 10mm/0.39inch(diameter tolerance +0.05mm/-0.05mm) Body length 13mm/0.51inch Overall length 16mm/0.63inch Elasticity: 30N Surface roughness: Ra 3.2 Material: 304 stainless steel Construction: stepless press-in ball head spring plunger Package quantity: 6 pcs

• Dimensions : Body diameter: 10 mm/0.39 inches (diameter tolerance +0.05mm/-0.05mm). Body length: 13 mm/0.51 in. Overall length: 16 mm/0.63 in. Elasticity: 30 Nm. Surface roughness: Ra 3.2
• Material: This spring locating bead is made of 304 stainless steel, which is high temperature resistance, high strength, corrosion resistance and not easy to rust; After precision casting and polishing, it has stronger wear resistance, good pressure bearing performance, and durability.
• Features: Precise positioning, easy installation and use, stepless design, flexible positioning and fast operation. It adopts a press-in mounting structure, which is easy to assemble and can realize functions such as positioning, indexing, locking, and pushing.
• Ball head positioning bead, smooth sliding and low wear: the front end is a spherical steel ball, which rolls friction when in contact with the mating pit, smooth opening and closing, low noise, and low wear, and is suitable for frequently moving cabinet doors, mechanical clamps, and sliding door positioning.
• Applicable scenarios: Press-fit spring plungers can provide stable pressure and precise positioning, and are widely used in mechanical equipment, tooling fixtures, automation equipment, furniture drawers, cabinet doors, and other scenarios.
